LOCK INSTRUCTIONS & WARRANTY SUPPORT
Find step-by-step lock setup instructions and service contact details below.
Select your lock type
3 Point Lock
Recessed Lock
TSA Lock
NON TSA Lock

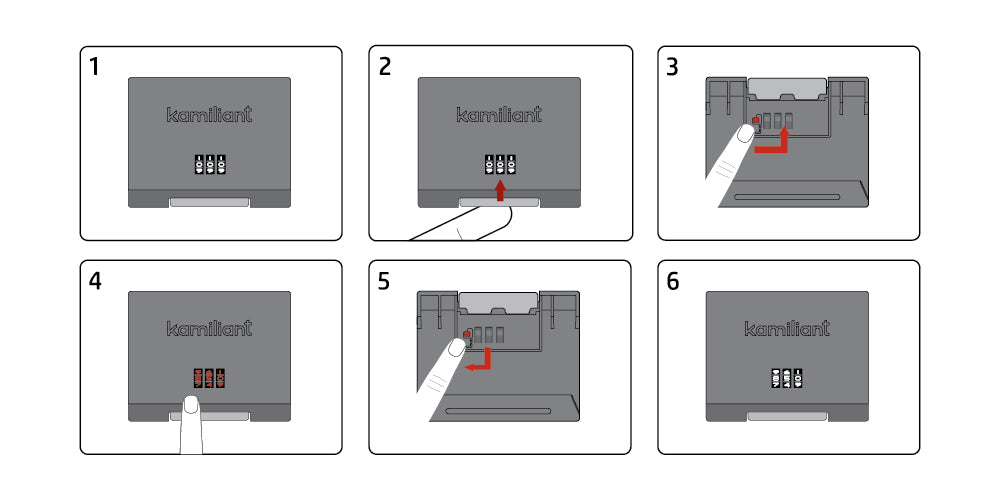

3 Point lock
1. Align dials to 000
2. Pull the lever of lock to open the suitcase as shown in the above image.
3. Back side of the lock you will see small lever, slide the lever to reset lock
code.
4. Turn the number dials to your desired combination
Example: 247
5. Move the lever back to original position, you new code is set.
6. Re-enter your code and check if it opens.

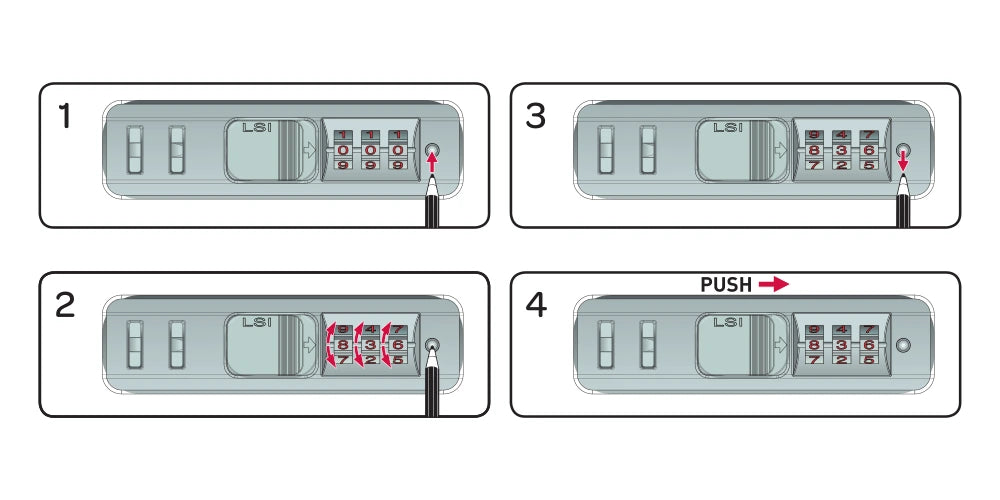

Recessed Lock
1. Set the dials to the current combination (factory setting is 0-0-0).
2. Using a pointed object (such as a pen tip), press the reset button ( marked in
the image) located near the dials.
3. Turn the number dials to your desired new combination.
4. Press the release button to save the new code.

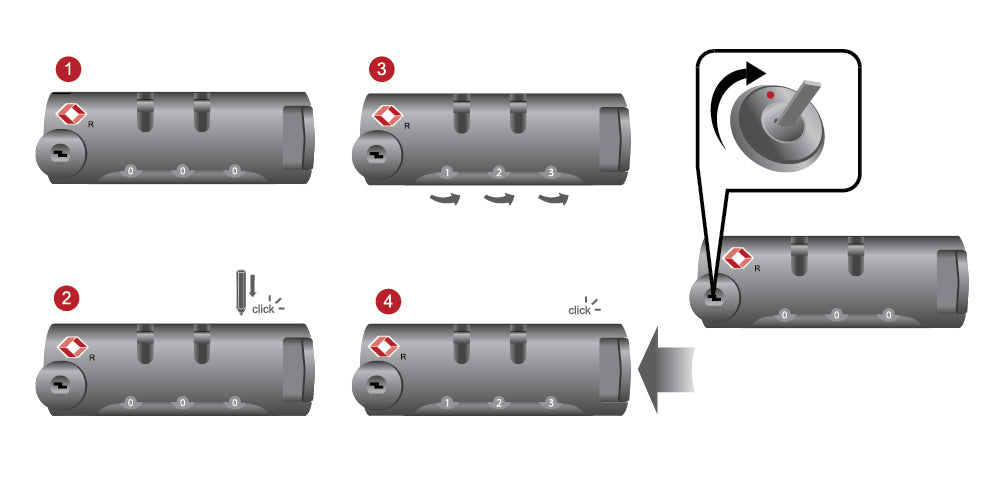

TSA Lock
1. Set the dials to the current combination (factory setting is 0-0-0).
2. Using a pointed object (such as a pen tip), press the reset button ( marked in
the image) located near the dials.
3. Turn the number dials to your desired new combination.
4. Press the release button to save the new code.

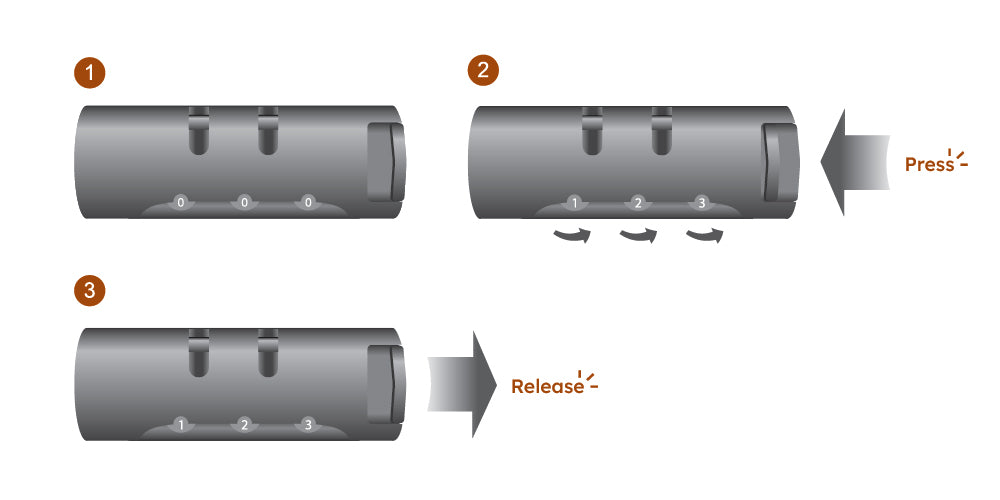

NON TSA Lock
1. Set the dials to the current combination (factory setting is 0-0-0).
2. Keep pressed the reset/open button ( marked in the image) located near the
dials.
3. Turn the number dials to your desired new combination.
4. Release button to save the new code.
WARRANTY & SERVICE SUPPORT
Need help? Contact our service team
